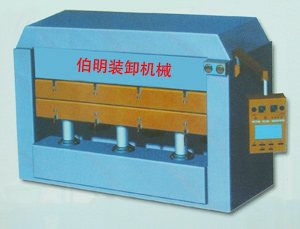

Solid wood veneer surface overlay machine
|
The machine is based on the international market situation
????????????????????????????????????, Large amount of demand for solid wood doors, windows, furniture surface developed a new type of surface overlay machine. The successful development of the product to solve the existing domestic coating equipment can not be thick solid wood veneer and curved surface, shaped parts to effectively paste the phenomenon. Really make up the domestic blank. The product has been national patent.
????????????????????????????????????The product broke through the existing laminating equipment vacuum, air pressure, infrared heating principle. Color with heat conduction oil in the form of hot high pressure by the middle of the special flexible plastic sheet directly on the solid wood veneer and curved surface, shaped parts for double-sided paste. Paste the perfect fruit, high yield, veneer thickness of up to 0.6mm.
????????????????????????????????????The machine is equipped with advanced LCD display angle touch screen, PLC programmable control circuit. You can program the various requirements of the workpiece. The operating mode can be manually / automatically switched control.
????????????????????????????????????Features: pressure; heat energy consumption with the rapid supply; high degree of automation; easy operation and maintenance; heat transfer oil system with high temperature of 150 degrees above the high-quality parts. Durable. |
Technical Parameters:
Serial number |
project |
parameter |
Remarks |
1 |
Dimensions： |
3200×1500×2200 |
customizable |
2 |
Working skin chamber space: |
2300×1300×45 |
customizable |
3 |
Maximum clamping force: |
400T |
Adjustable |
4 |
Max Unitpressure: |
12KG/cm2 |
Adjustable |
5 |
Automatic program time: |
0-6Minute |
Adjustable |
6 |
Heating temperature: |
0-120° |
Adjustable |
7 |
Installed Total power: |
40KG |
|
Note: data and parameter can be customized according to customer requirements, welcomed the inquiry, negotiate. |
|
|
|
