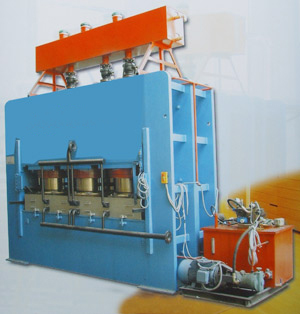

NYJ2200 double-sided hot pressing machine
| |
|
The machine is mainly used for high-grade Vtype slot to strengthen the floor of the paste paste processing, a paste into type, high efficiency, excellent quality, is a large number of the production of high-grade Vtype slot to strengthen the floor of the preferred equipment manufacturers.
Double press hot pressTechnical Parameters
model |
pressure |
Main quantity |
Bore |
Total power |
Hot plate thickness |
Self-respect |
on |
under |
NYJ-900 |
25Mpa |
6 only |
φ280mm |
22KW |
140mm |
100mm |
25t |
NYJ-1200 |
25MPa |
6 only |
φ320mm |
22KW |
140mm |
100mm |
32t |
NYJ-1400 |
25Mpa |
6 only |
φ350mm |
22KW |
140mm |
120mm |
35t |
NYJ-1700 |
25Mpa |
6 only |
φ380mm |
22KW |
150mm |
120mm |
39t |
NYJ-2000 |
25MPa |
6 only |
φ400mm |
22KW |
160mm |
120mm |
45t |
NYJ-2200 |
25Mpa |
6 only |
φ420mm |
22KW |
160mm |
120mm |
47t |
NYJ-2400 |
25Mpa |
6 only |
φ380mm |
22KW |
170mm |
120mm |
50t |
|
|
|
