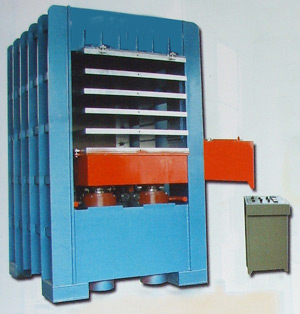

NYJ multi - layer hot press
|
The machine is used for multi-block substrate plate at the same time press the press work, according to user requirements design a variety of specifications products.
Of single - sided pressing machine Parameters:
model |
pressure |
Main quantity |
Bore |
Total power |
Hot plate thickness |
Self-respect |
NYJ-700 |
25MPa |
6 only |
¦Õ250mm |
26KW |
52mm¡«(72mm) |
18t |
NYJ-900 |
25MPa |
6 only |
¦Õ280mm |
30KW |
52mm¡«(72mm) |
23t |
NYJ-1200 |
25MPa |
6 only |
¦Õ320mm |
32.5KW |
52mm¡«(72mm) |
28t |
NYJ multi-layer |
25MPa |
4 only¡«6 only |
¦Õ320mm¡«¦Õ350mm |
30KW |
52mm¡«(72mm) |
Ranging from |
|
Note: The upper technical product hot plate standard configuration thickness of 52mm, according to user requirements thickening to 72mm price by real
|
|
|
|
