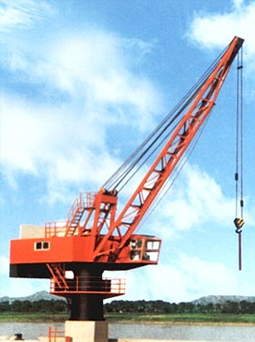

HGQ series of fixed rotary cranes
|
GQ3-10Fixed Lifting Machine
|
GQ16-40Fixed Lifting Machine
|
|
|
|
|
| This model is used for small and medium-sized berths in inland ports and can also be used for grocery loading, warehouses or barges for grocery loading and unloading operations. The model for the single-arm type, wire rope amplitude, the use of complex pulley compensation, the goods can be used for horizontal displacement, therefore, but also full amplitude with amplitude, high operating efficiency. The machine can be used for 360 degrees full rotation R, rotary R support with four single contact ball bearings, smooth operation, the use of reliable. According to the factory enterprise standard (HGQ back to R support fixed crane) combined (GB3811-83 crane design specifications) manufacturing. |
|
Rated
Lifting
amount
(t) |
Working range Liftingamount |
Lifting height(m) |
Rise
speedr/min
|
Variation
speedr/min
|
turn
speedr/min
|
end
turn
Semi-light
m
|
Installed capacity
kw
|
|
Bearing surface above |
Bearing surface below |
| 3.2 |
Liftingamount
(t) |
3.2 |
9 |
6 |
18 |
10 |
1.2 |
1.2 |
21 |
| Working range
(m) |
5-12 |
| 5 |
Liftingamount
(t) |
5 |
9 |
6 |
18 |
10 |
1.2 |
1.2 |
26 |
| Working range
(m) |
5-12 |
| 10 |
Liftingamount
(t) |
10 |
8 |
6 |
9 |
6 |
9 |
10 |
1.2 |
1.2 |
31 |
| Working range
(m) |
5-6.5 |
5-8 |
5-12 |
| 16 |
Liftingamount
(t) |
16 |
11 |
6 |
9 |
6 |
7.75 |
15 |
1.46 |
1.46 |
37 |
| Working range
(m) |
4.8-5.5 |
4.8-7 |
4.8-12 |
| 20 |
Liftingamount
(t) |
20 |
14 |
12.5 |
11 |
6 |
7.75 |
15 |
1.46 |
1.46 |
41 |
| Working range
(m) |
4.8-7.5 |
4.8-10 |
4.8-12 |
| 25 |
Liftingamount
(t) |
25 |
20 |
15 |
13 |
8 |
14 |
18 |
1.55 |
1.55 |
127 |
| Working range
(m) |
4.8-7.5 |
4.8-10 |
4.8-12 |
|
| |
|
| |
|
|
|
