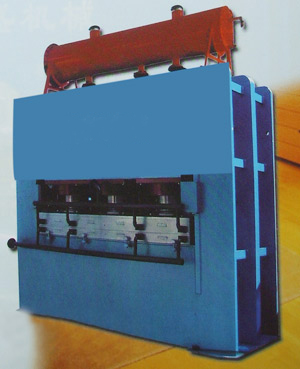

Double press hot press-Wuxi Birming Loading And Unloading Machinery Plant

The machine is mainly used for high-grade Vtype slot to strengthen the floor of the paste processing, a paste into type, high efficiency, excellent quality, is a large number of the production of high-grade Vtype slot to strengthen the floor of the first manufacturers of equipment.

Double press hot pressTechnical Parameters:

model	pressure	Main quantity	Bore	Total power	Hot plate thickness		Self-respect
model	pressure	Main quantity	Bore	Total power	on	under	Self-respect
NYJ-900	25Mpa	6 only	φ280mm	22KW	140mm	100mm	25t
NYJ-1200	25MPa	6 only	φ320mm	22KW	140mm	100mm	32t
NYJ-1400	25Mpa	6 only	φ350mm	22KW	140mm	120mm	35t
NYJ-1700	25Mpa	6 only	φ380mm	22KW	150mm	120mm	39t
NYJ-2000	25MPa	6 only	φ400mm	22KW	160mm	120mm	45t
NYJ-2200	25Mpa	6 only	φ420mm	22KW	160mm	120mm	47t
NYJ-2400	25Mpa	6 only	φ380mm	22KW	170mm	120mm	50t
